Frontend Dev Notes

Overview

We will most likely be using…

• React for the front end UI
  • React-Select for dropdown menus
• Axios for making HTTP requests to the backend
• Tailwind CSS or Material UI for styling
  • Might want to look into other styling options
  • Will use shadcn/ui

Initialize React Project

Install NPM

npx is an npm command. we need to install NPM first. NPM comes with Node.js, so let’s install it from their websites recommended method:

1. Install Node Version Manager (nvm)
2. Use nvm to install Node.js

# Download and install nvm:
curl -o- https://raw.githubusercontent.com/nvm-sh/nvm/v0.40.1/install.sh | bash

# Download and install Node.js:
nvm install 22

# Verify the Node.js version:
node -v # Should print "v22.13.0".
nvm current # Should print "v22.13.0".

# Verify npm version:
npm -v # Should print "10.9.2".


Initialize React App

npx create-react-app frontend
cd frontend
npm install axios react-select

npx VS npm

NPM = Install and run package
NPX = Run the package but don’t install it

One installs a package/dependency for your project, saves it under node_modules and also in the package.json, example: npm i express
The other one “executes” the package, only for that run, and doesn’t save anything anywhere, for example: npx create-react-app

IMPORTANT: VULNERABILITIES

={red}TODO= You still need to address these 6 vulnerabilities at a later date:

* **nth-check < 2.0.1 (high severity):** This vulnerability is related to inefficient regular expression complexity in `nth-check`.
* **css-select <= 3.1.0 (depends on vulnerable nth-check):** This vulnerability is inherited from the dependency `nth-check`.
* **svgo 1.0.0 - 1.3.2 (depends on vulnerable css-select):** This vulnerability is inherited from the dependency `css-select`.
* **@svgr/plugin-svgo <= 5.5.0 (depends on vulnerable svgo):** This vulnerability is inherited from the dependency `svgo`.
* **@svgr/webpack 4.0.0 - 5.5.0 (depends on vulnerable @svgr/plugin-svgo):** This vulnerability is inherited from the dependency `@svgr/plugin-svgo`.
* **react-scripts >= 2.1.4 (depends on vulnerable @svgr/webpack and resolve-url-loader):** This vulnerability is inherited from the dependencies `@svgr/webpack` and `resolve-url-loader`.
* **resolve-url-loader < 0.0.1-experiment-postcss || 3.0.0-alpha.1 - 4.0.0 (moderate severity):** This vulnerability is related to PostCSS line return parsing errors.
* **postcss < 8.4.31 (moderate severity):** This vulnerability is also related to PostCSS line return parsing errors.

Create REACT Components

Going to go with these techs

• Tailwind CSS: The base styling framework. It provides utility classes you use to style all components.
• shadcn/ui: A source of customizable, unstyled components that you can style with Tailwind. These will form the core of your application’s custom design system.
• DaisyUI: A helper library for prototyping with pre-styled components, speeding up the development process for less critical UI elements.

For now I’m just going to use DaisyUI to create a text output area and a text input area with a dropdown to select LLMs
I will potentially switch to shadcn later when I understand react better.

npm install -D tailwindcss postcss autoprefixer
npx tailwindcss init
npm install daisyui

VSCode Compatibility

Get Tailwind VSCode Extension: Tailwind CSS IntelliSense
Add tailwind to CSS file associations in the VSCode settings.json file (command+shift+p: open user settings(JSON))

"files.associations": {
  "*.css": "tailwindcss"
  }

Comments in JSX:

{/* This is a single-line comment in JSX */}
{/* This is a
   multi-line comment in JSX */}

Created 3 Component. Comments can be found in files themselves

• App.jsx
• ChatHistory.jsx
• ChatInput.jsx

You’ll need to create message objects in store them in the mongodb history. Right now, queries are being saved in a db called “result”
Think about how you want to approach saving chats. It should probably be per user
This means youll have

• user object
  • info about the user
  • contains user_preference object
  • contains chat
• user_preference object
  • configs and preferences tied to user (api keys for instance)
• chat_message object
  • contains a result object tied to a user object
  • contains a chat_id
• chat_window object
  • contains chat_window_id
  • contains list of chat_message objects tied by chat_id
• chat_configs object
  • maps to chat_id
  • contains configs for each chat (llm provider configs for instance)
• result object

Refined Schema Design for This Data that was made using ChatGPT

FrontEnd DaisyUI Tasks

• Theme controller is used to change page theme https://v5.daisyui.com/components/theme-controller/
• You’ll want to use https://daisyui.com/components/badge/ for the LLM labels on QueryDisplay
• You can use https://daisyui.com/components/avatar/ for a UI profile button
• Maybe you can make ResultWindow a carousel https://daisyui.com/components/carousel/
• Loading can be used when fetching results: https://daisyui.com/components/loading/
  • Or you can use load progress https://daisyui.com/components/progress/
• You can update the checkbox https://daisyui.com/components/checkbox/
  • https://daisyui.com/components/toggle/ using toggles might look cooler
• You can use range to set the model temps https://daisyui.com/components/range/
• Should use textarea for inputsection https://daisyui.com/components/textarea/ ✅ 2025-01-23
• Use dividers between your ResultCards https://daisyui.com/components/divider/

Connect FrontEnd to BackEnd

Now that you have these components created:

• QueryDisplay: Displays user query and llm_provider tags at top
• ResultWindow: Displays all llm results as individual components
  • ResultCard: Displays result for a single llm provider
• InputSection: Area where user inputs query. Includes section to choose LLM providers
• ChatList: Panel on left that shows the users chats

You’ll need to connect them to the backend.
Currently, when InputSection fires, /query will be called.
The result will be returned from const handleSendQuery = (newQuery) => { which gets called when the submit button is pressed.
So then, you’ll want to initialize the resultWindow with resultcards created from the /query results

CORS Needed

Realized that you will need CORS to run backend/frontend together.
Refer here: CORS To run Frontend+Backend

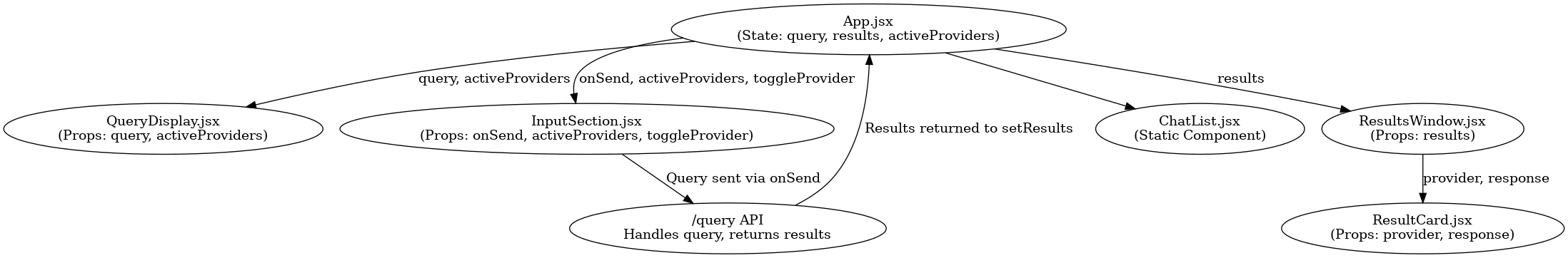

This is the current flow of your Props and their states (Jan 17)

This diagram illustrates:

• Where state (query, results, activeProviders) is defined (App.jsx).
• How props (onSend, activeProviders, results) are passed to child components.
• How InputSection communicates with the backend via the /query endpoint and how results flow back into the app.

1. Keep Backend Calls in App.jsx:
   • Make the API call in handleSendQuery and update results.
2. Refactor API Calls:
   • Use a utility or API service file (api.js) to centralize the logic for making requests to /query.
3. Optimize Performance:
   • Use React’s useCallback to memoize handleSendQuery if it’s passed as a prop to multiple children.
4. Test Data Flow:
   • Use React DevTools to verify how results propagates from App.jsx to ResultsWindow and ResultCard.

You will need to restructure the /query response. Your current schema is not best practice for JSON

JSON Best Practice

Markdown on ResultCards

First you need to install correct libraries

npm install react-markdown
npm install remark-gfm
npm install rehype-raw

Then update resultCard to use react-markdown

To make it look even better, add typography library from TailWind

npm install @tailwindcss/typography

And add to tailwind configs

module.exports = {
  content: ["./src/**/*.{js,jsx,ts,tsx}"],
  theme: {
    extend: {},
  },
  plugins: [require("@tailwindcss/typography")],
};

---

---
